- Highly accurate shut off clutch.
- Allows vaccum pick up of screws by integrated vaccum port
Air ToolsView All0.8Ncm to 30Ncm
Your item has been added!
xPlease sign in
Don't have an account? Create one now

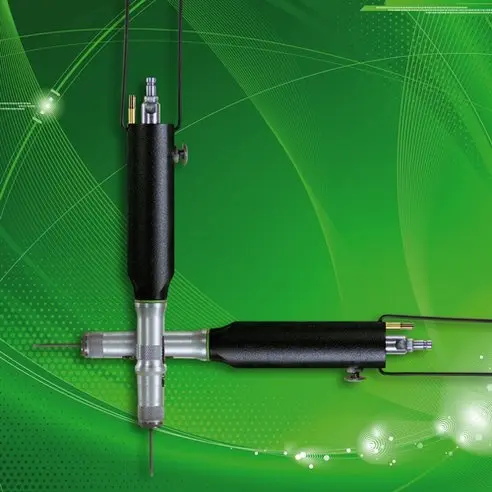

Sign in with Facebook0.8Ncm to 30NcmItem No. Nanomat14763POADescriptionThe torque controlled screwdriver for extremely small torque values of 8Nmm upto 300Nmm accurately.
The ideal solutions for micro assemblies in the medical industry, the watchmaking industry, optical industry, for the assembly of samll consumer electronics and components and for use with precision engineering or model making.
The high torque-accuracy is achieved by the proven principle of the DEPRAG disengagement- and shut-off clutch. This special clutch design enables our screwdriver to reach extreme high torque accuracy, in most cases below ± 3% of the standard deviation, which is kept constant over several million of cycles.
DEPRAG pneumatic driven low torque screwdrivers with a shut-off clutch opperated at suitable surrounding conditions achieve a Cmk value of ≥ 1.67 with a tolerance requirement of ± 10% in relation to 6 Sigma according to ISO 5393. A Cmk value of 1.67 means that there is a failure rate of only 0.6 per one million screw assemblies.There are no interfering hoses on the side of the screwdriver
View 0.8Ncm to 30Ncm File size 702.2 Kb Accessories To Suit
Spring Balancers Small833320Small Spring Balancers for pneumatic tools Small Spring Balancers Model Capacity Cable Length 833320A 0 to 0.5kg 1.6m 833320B 0.3 to 1.5kg 1.6m 833320C 1.2 to 2.5kg 1.6mMore InfoPowered by BlueSoap |
